Purpose: Read and write CAS4 Anti-theft box without dismantling by CG Pro 9S12 programmer
Preparation:
(Make sure the software is V2.1.9.0 or above)
BMW CAS4 anti-theft box (5M48H)
Laptop
Procedure:

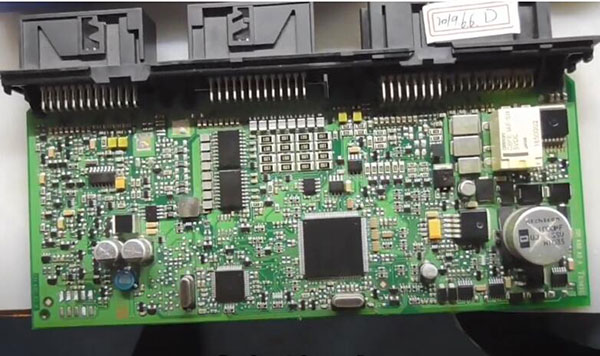

Remove the CAS4 inner board
5M48H on the chip
Connect CG PRO 9S12 device with computer
Open CGPRO software
Enter Model page
Select the corresponding type, brand and mode: Immobilizer-> BMW-> CAS4-5M48H (Convenience)
Click Diagram
Select 5M48H Metal- Convenience
Click full screen to see clearly
Follow the wiring diagram to connect the new DB25 adapter and CAS4 anti-theft box carefully and patiently
Then plug another interface of CAS4 DB25 adapter to CG PRO 9S12 device
After wiring, click Read
Note: Don’t disconnect when reading the chip.
After read data successfully, click “OK” to save data
Now perform the first verification to see if the data has miles
Select Dashboard-> BMW-> CAS4-5M48H (Convenience), and click Open
Verified successfully and show mileage correctly
Finally, perform verification to see if there is key information
Select Dashboard-> BMW-> CAS4-5M48H (Convenience), and click Open
Show the key info successfully
Video reference:
Why do you need a new DB25 adapter?
New DB25 adapter is a professional adapter works with CG PRO 9S12 programmer, can read, write CAS4 -5M48H/ 1N35H without disassembling.
Please kindly notice:
This new DB25 adapter only can work with CG Pro 9S12 new design (device bought after April, 2019)
Why do you need the CG PRO 9S12 V2.1.9.0 or above?
Because in the V2.1.9.0 CG PRO 9S12 added BMW CAS4-5M48H and CAS4-1N35H Immobilizer options, besides that, also added the corresponding models on the dashboard and key options.
The newest software is V2.2.2.0 (updated on April 17th, 2020)
Free download link: https://mega.nz/#F!iaZWxSKK!qUCFas1gnSK2EVAOgZGN0w
No password, no risk!
Size: 813.8MB
Check the full update information here:
V2.1.9.0 CG PRO 9S12 updated on Dec.16th, 2019
1. Immobilizer added support
BMW CAS4-5M48H (Convenience) (Requires a dedicated adapter!)
BMW CAS4-5M48H (Convenience PFLASH) (Requires a dedicated adapter!)
BMW CAS4-1N35H (Convenience) (Requires a dedicated adapter!)
BMW CAS4-1N35H (Convenience PFLASH) (Requires a dedicated adapter!)
2. Dashboard added support and automatic algorithm
BMW CAS4-5M48H (Convenience) (Requires a dedicated adapter!)
BMW CAS4-5M48H (Convenience PFLASH) (Requires a dedicated adapter!)
BMW CAS4-1N35H (Convenience) (Requires a dedicated adapter!)
BMW CAS4-1N35H (Convenience PFLASH) (Requires a dedicated adapter!)
BENZ EIS-211 (ST12)
Brilliance ZHONGHUA V5-13 Year Dashboard
Buick Excelle-Dashboard
Chevrolet Captive-13 Year Dashboard
Ford FOCUS 5M5T10849ER
SAIC MAXUS-17 Year Dashboard
Volvo 10 Year-XC90 Dashboard
3.Key, added support
BMW CAS4-5M48H (Convenience) (Requires a dedicated adapter!)
BMW CAS4-5M48H (Convenience PFLASH) (Requires a dedicated adapter!)
BMW CAS4-1N35H (Convenience) (Requires a dedicated adapter!)
BMW CAS4-1N35H (Convenience PFLASH) (Requires a dedicated adapter!)
Porsche BCM-1L15Y
Tata Indigo 2008 24C04
Citroen Berlingo 2000 NEC
Citroen Xsara 2000 NEC
Peugeot Cars Partner 2000 NEC
Chevrolet Camaro 2015 24C32
Chevrolet Cruze 2008 24C16
Chevrolet Equinox 2011 24C16 HIAG
Peugeot Cars 4007 2008 24C16
Smart Forfour 2004 9S12
VAZ Priora 2013 95040
UAZ Hunter 2010 TC1762
Chevrolet Captiva 2011 9S08 HIAG
Chevrolet Silverado 2011 9S08 HIAG
4. Chips added decrypt support
Motorola - 9S12
9S12XEP100-5M48H (Convenience)
9S12XEP100-1N35H (Convenience)
Renesas - H8SX
R5F61721 (P+E)
R5F61723 (P+E)
R5F61725 (P+E)
R5F61725 (P+E)
R5F61797 (P+E)
5.Customer feedback to increase the picture upload function
6. Key generation key matching function integration, interface optimization adjustment
