Autel IM608 and XP400 Program 2018 Range Rover Sport All Keys Lost

This article shares the tutorial about how to program smart key to 2018 Range Rover Sport when all keys lost by Autel MaxiIM IM608.

Car: 2018 Range Rover Sport

Issue: All keys lost

Case: Program smart key by Autel IM608

What will you learn?

1.Cover the special tools and skills required

2.How to prevent your XP400 from being “fried”

3.Getting familiarized with the RFA/KVM module and how to properly connect it to the XP400

4.The difference between secured and unsecured circuit boards

5.Complete step by step instructions on how to add a key with IM608

Tools needed:

Smart key

Soldering kit

Autel MaxiIM IM608 tablet

XP400 key programmer

APA106 cable

Src: http://www.eobdtool.co.uk/wholesale/autel-maxiim-im608.html

Note: Buy Autel IM608 get one free Autel G-Box2 Accessory Tool!

Make sure to connect the device by correct connection:

Before programming new keys, do the work below:

1.Remove the RFA/KVM module from vehicle

Note: The Remote Frequency Actuator (RFA) also know as Key Vehicle Module (KVM)

The security circuit boards have crystal quartz and a capacitor.

De-solder the crystal-> capacitor-> connecting to the APA106 cable to do the key programming procedure. When having done that, out the crystal quartz and capacitor back to the tablet and put in the car.

Note: If eight circuit board doesn’t have the capacitors that means it’s unsecured.

2. Landrover after 2018 has an OTP which means one time programming, so need to check the key chip status before key writing

Then start to add a new smart key with Autel IM608 and XP400.

Main steps:

Step 1 : Read chips status

Step 2: Read MCU data

Step 3: Write MCU Data

Go ahead…

Select IMMO function

Accept the disclaimer about the use of product and software

Select LandRover

Establish a connection to the VCI…

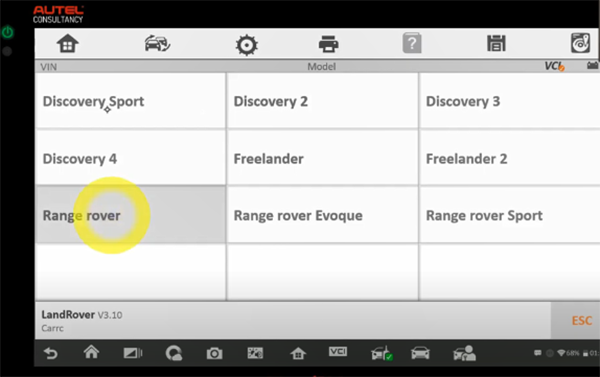

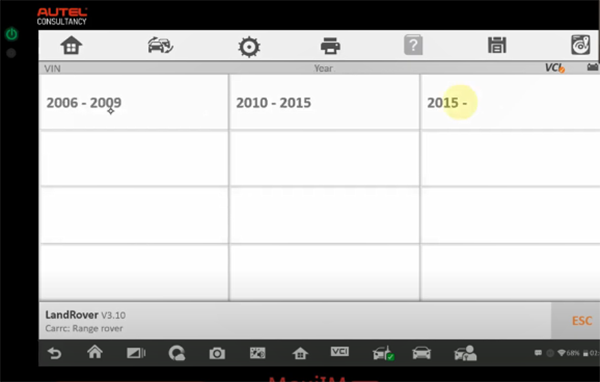

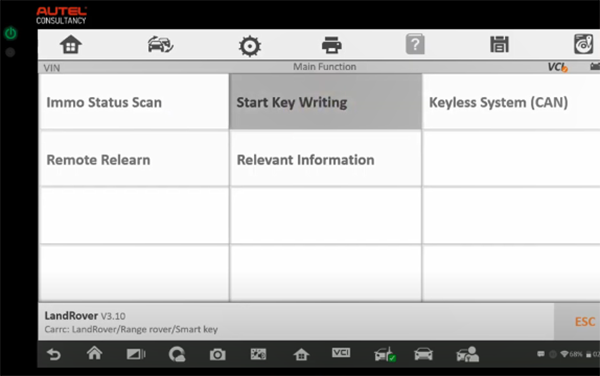

Tap Manual Selection-> Range rover->2015à Smart key-> Start key writing

Pay attention to the instruction of start key writing

For detailed operation, you can press the Operation Guide button at the bottom right corner to operate.

Step 1: Read Chip Status

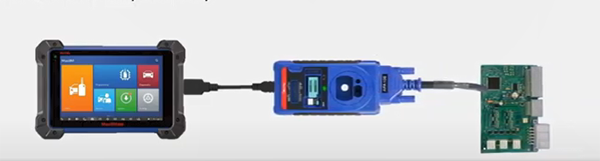

Follow the connection diagram to connect to the programmer XP400

There are two chips status:

If it’s “Locking”, you should click on Read/write Chip Data (Secured).

If it’s “Unlocking”, you should click on Read/write Chip Data (Unsecured).

Read out the chip status is locking

So enter Read/write Chip Data (Secured) menu

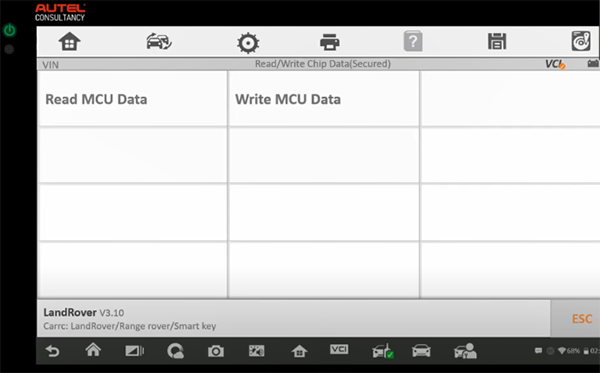

There are two options: Read MCU Data and Write MCU Data

Step 2: Read MCU data

Read D-FLASH

D-flash stands for “Data Flash” where you store nonvolatile data. Nonvolatile memory is a type of computer memory that can store the data regardless of the memory has power or not.

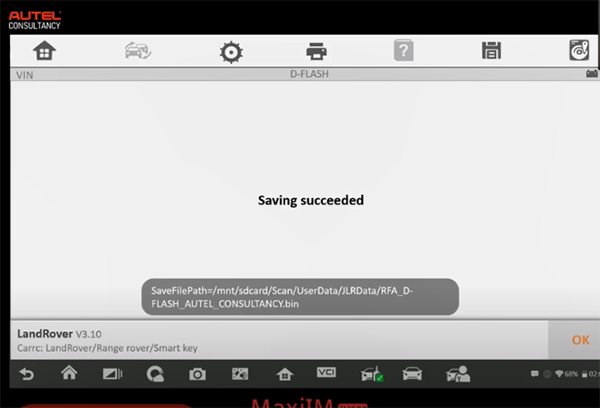

Read data successfully and then save it

Read EEPROM

EEPROM stands for electrically erasable programmable read-only memory and is a type of non-volatile memory used in computers, integrated in microcontrollers for smart cards and remote keyless systems…

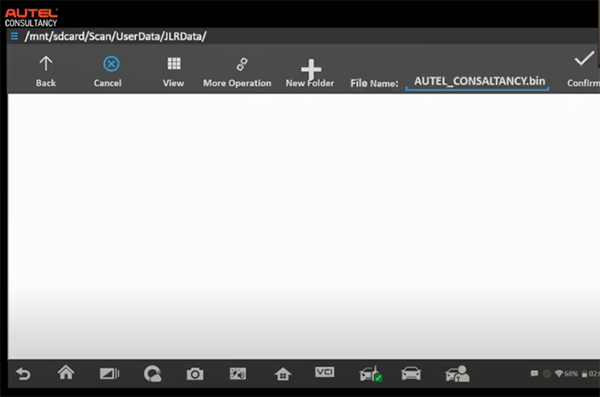

Save success
