CG Pro 9S12 Read Porsche BCM 1N35H Without Dismantling

With the new DB25 adapter, CG Pro 9S12 key programmer can read Porsche BCM 1N35H and 5M48H more conveniently, no need to dismantle the chip. Go ahead to check the guide to read BCM 1N35H.

Main tools need:

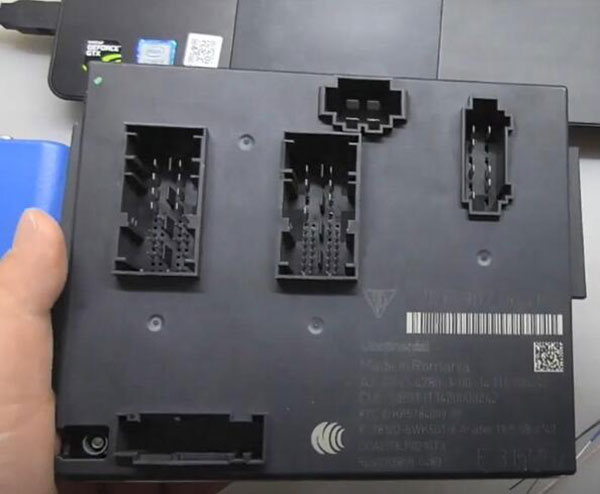

Porsche BCM module


CG Pro 9S12 programmer V2.2.0.0 or above

New DB25 adapter

Note: Buy CG Pro 9S12 programmer full version get free new DB25 adapter

Please kindly notice:
You have to make sure the CG Pro 9S12 software is V2.2.0.0 or above. The Porsche BCM-1N35H and 5M48H models have been added in the Immobilizer option in the V2.2.0.0 software.

CG PRO 9S12 V2.2.0.0 (Jan. 10th, 2020) update info:
1. Immobilizer added support
 Porsche BCM-1N35H (Convenience) (Requires a dedicated adapter!)
 Porsche BCM-1N35H (Convenience PFLASH) (Requires a dedicated adapter!)
 Porsche BCM-5M48H (Convenience) (Requires a dedicated adapter!)
 Porsche BCM-5M48H (Convenience PFLASH) (Requires a dedicated adapter!)

4. Key, added support
 Porsche BCM-1N35H (Convenience) (Requires a dedicated adapter!)
 Porsche BCM-5M48H (Convenience) (Requires a dedicated adapter!)

Free download the newest CG Pro 9S12 software V2.2.2.0 here: https://mega.nz/#F!iaZWxSKK!qUCFas1gnSK2EVAOgZGN0w

Guide to read Porsche BCM 1N35H by CG PRO 9S12:
Connect CG PRO 9S12 device to computer

Run CG Pro software
Click Model option
Select Immobilizer-> Porsche-> BCM 1N35H (convenience)
Click Diagram-> choose Porsche BCM 1N35H 5M48H (Ceramic convenience)

Click Fullscreen to see the diagram clearly

Remove the BCM shell and take out the circuit board smoothly

Follow the wiring diagram to wiring DB25 adapter with Porsche BCM module

Then connect to CG PRO 9S12 device

After wiring, click Read to read data

Note: Don’t disconnect in the reading process.

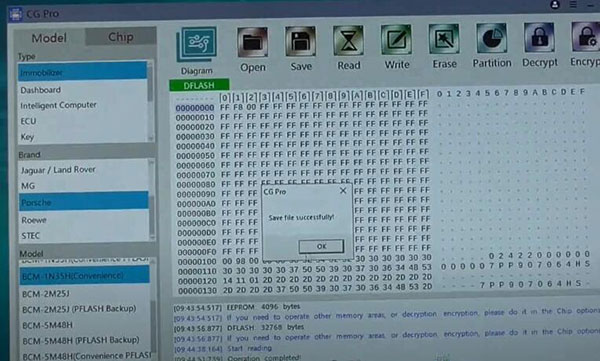

Read data successfully, then save data

Finish saving data

Complete!

For your convenience, here is the video of CG PRO 9S12 read Porsche BCM-1N35H:


Besides Porsche BCM 1N35H and 5M48H (Convenience), CG PRO 9S12 also can read BMW CAS4-5M48H and 1N35H (Convenience) without soldering, please refer to this article:
