Confirmed! It’s tested ok to program new key to 2011 Mercedes- Benz W212 E350 Sedan when all keys lost by Autel MaxiIM IM608.
Car: 2011 Mercedes- Benz E350 Sedan (W212)
Issue: all keys lost
Solution: Program new key by Autel IM608 key programmer by smart mode

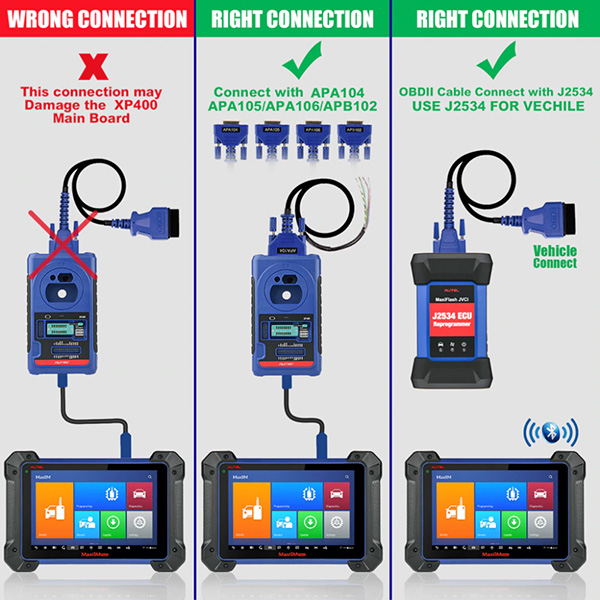

Follow the right connection to connect MaxiIM IM608 device to the vehicle
Enter IMMO main and accept the disclaimer about the use of product and software
Select Mercedes-Benz-> Smart Mode->All keys lost-> On vehicle
Reading vehicle info
Confirm the vehicle info readout
Select Read EIS data and press Begin
Follow the instruction to insert the blank key into the IR keyhole on the XP400 key programmer, and press OK on the screen
Upgrading firmware, don’t unplug the USB cable
It will ask whether there is a key password, just click No
Then enter Password Calculation process
1.Connect the device OBD cable and OBD connector on the wiring harness in sequence
2.Connect the IR key simulator (APB 102/APB125) to the XP400 programmer
3.Insert the IR key simulator (APB 102/APB125) into the EIS
If it’s already inserted, remove and insert it again.
Start to acquire data and calculate password. It will take about 10-30 minutes in the whole process. Some cars will take longer.
Compute the password successfully
Return to the All Key Lost data collection process and go to the next step
Generating key file
Insert the blank key into the IR key keyhole on the programmer to write data
Write new key success
Then follow the prompt to test the new key
Insert the new key into the EIS
-If the red indicator lamp on the key lights up and goes off, the key learning is successful.
-If the red indicator lamp stays lit, please try inserting and removing the key for several times.
-If still not working, the key addition failed.
Attach the Autel IM608 Mercedes-Benz (Smart Mode) Key programming list:
Car brand | Sub-system | Function | Version |
Mercedes-Benz | W164/-2008 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W164/-2008 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W164/-2008 | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W164/2009- | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W164/2009- | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W164/2009- | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W166 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W166 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W169 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W169 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W169 | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W172 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W172 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W172 | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W197 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W197 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W202(K) | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W202(K) | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W202(K) | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W203(K) | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W203(K) | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W203(K) | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W204 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W204 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W204 | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W207 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W207 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W207 | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W208(K) | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W208(K) | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W208(K) | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W209(K) | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W209(K) | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W209/2006- | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W209/2006- | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W209/2006- | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W210(K) | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W210(K) | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W210(K) | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W211 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W211 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W211 | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W212 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W212 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W215(K) | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W216 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W216 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W216 | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W218 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W218 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W220(K) | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W220(K) | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W221 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W221 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W221 | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W230(K) | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W246 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W246 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W251/-2008 | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W251/-2008 | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W251/2009- | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W251/2009- | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W251/2009- | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W463(K) | Add key | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W463(K) | All keys lost | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W463(K) | All keys lost (Fast) | Above Mercedes-Benz_V3.40 |
Mercedes-Benz | W220(K) | All keys lost (Fast) | Above Mercedes-Benz_V3.70 |
Mercedes-Benz | W215(K) | All keys lost | Above Mercedes-Benz_V3.90 |
Mercedes-Benz | W215(K) | All keys lost (Fast) | Above Mercedes-Benz_V3.90 |
Mercedes-Benz | W230(K) | All keys lost | Above Mercedes-Benz_V3.90 |
