Confirmed! GODIAG GT100 is often connected to Mercedes-Benz W164 EIS on the bench and skim EIS data with VVDI Key Tool Plus.
The reason to use GODIAG GT100 OBDII ECU Connector:
GODIAG GT100 not only can hook up with an easy control unit but also multiple control units. once we add keys or program new keys when all keys lost and that we don’t have the Mercedes-Benz test lines, we will use GT100 to attach. If the amount of lines on the most harness isn't enough, the banana heads are often wont to draw their definition lines to attach with the EIS control unit. If you're skilled and have a far better understanding of the schematic and features, then GT100 is really very convenient for your job.
Purpose: check whether GODIAG GT100 with GODIAG FEM/BDC Test Platform can work with CGDI Prog BMW to feature new key, test & program FEM/BDC.
Why should use GODIAG GT100 & BMW FEM/BDC Test Platform?
The reason is that it cannot program FEM/BDC via OBD2 directly, and every one FEM/BDC module got to be faraway from the car. GODIAG devices can make the key programming procedure easier and safer.
All devices required:
GODIAG GT100 OBD II Break Out Box ECU Connector
Mercedes-Benz W164/ W204 W207 EIS
Gateway
Desktop or PC
Step-by-step guide:
1.Connect devices correctly by the wiring diagram
Connect a gateway or gateway simulator
Then connect the EIS and gateway to GODIAG GT100 to see if it can communicate
Check the related EIS wiring diagram
The two plugs on the diagram mean the two pugs on the EIS, there is OBD pin
The pin line is in front of the gateway
Then follow the wiring diagram to connect properly
2.Operation
Enter the VVDI Key Tool Plus Pad

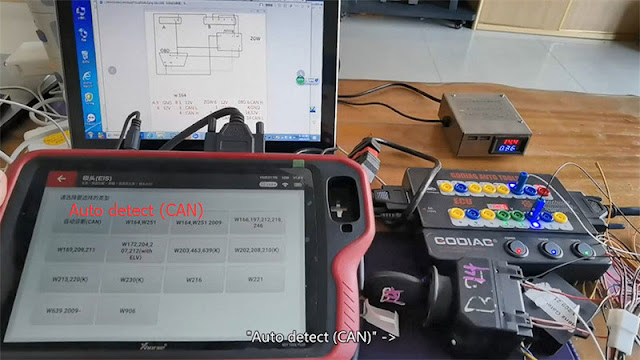

Select “By the system”-> “Read EIS”-> “Auto detect (CAN)”
Then it will detect out the related EIS type
Select “Read EIS data”-> “OBD”
Read out the data successfully
For your convenience, watch the video carefully to learn more.
