This article shows you a user guide on how to do an update on Xhorse Key Tool Max With Mini OBD Tool for newbies.
Here are the detailed steps, please check carefully.
Part 1: the way to update Xhorse VVDI Key Tool Max?
You must connect your VVDI KEY Tool MAX to a WIFI network
Then update Key Tool Max by pressing the update button at the most home screen
It will show you Xhorse App update version, Xhorse VVDI key tool Firmware update version & Xhorse VVDI key tool remote database update version, to update your VVDI Key Tool Max by pressing update and it'll be ready in jiffy.
Part 2: the way to update MINI OBD Tool firmware on VVDI Key Tool Max?
Firstly, update Mini OBD Tool firmware via Upgrade Kit

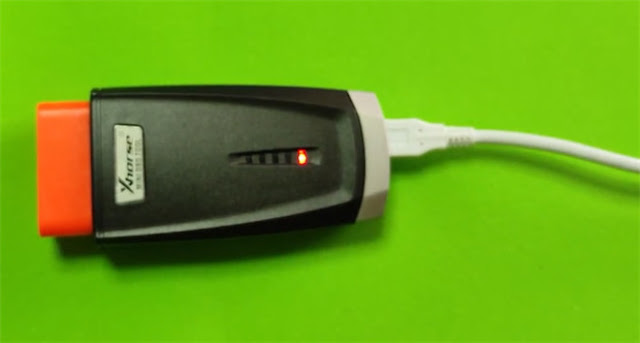

Connect Xhorse Mini OBD Tool to the pc via USB cable
Open the Upgrade Kit has been downloaded and installed on the pc
Click “Find device” to seek out the related update info of Mini OBD
Then click “Upgrade” to update it to the most recent firmware version
Next, update Mini OBD Tool firmware on Key Tool Max
Go to MINI OBD main menu
Tap “Select” to connect the available Mini OBD Tool to VVDI Key Tool Max
When the connection is normal, it will prompt WiFi firmware update notice.
Click “Update” to continue
There are two methods to connect: Bluetooth connection and USB connection.
Read the on-screen tips and tap “Go setting”
Select “Connection method Bluetooth method (better)”
Note: If switch the connection mode, device will be disconnected.
Select “WiFi connection”
Go back to main menu and connect with Mini OBD Tool again
Then follow the prompt to enter update process again
--Make sure the WiFi connection is good.
--The update will take around 1-2 minutes, ensure device with enough power at least/remain more than 20%.
--Don’t press POWER button while update
Then press “Continue”
Update Mini OBD firmware via WiFi successfully
