VW AUDI Gearbox Clone/ Mileage Correction by Yanhua ACDP No Soldering

There are three Mini ACDP modules (module 13/19/21) specially designed by Yanhua Tech for VW/ AUDI Gearbox. Working with Yanhua ACDP and the corresponding authorization, you can quickly use the module to do clone or correct mileage without soldering.

1. Yanhua ACDP module 13 (VW/Audi Gearbox Clone Module 13)

Feature: supports VW, Audi DQ200 (0AM/0CM), DQ250 (02E/0D9), DL382 (0CK), DL501 (0B5), VL381 (0AW) models gearbox clone

2. Yanhua ACDP module 19 (SH725XX Gearbox Clone Module 19)

Feature: supports VW/Audi ZF 8HP, VW/Audi DQ380/DQ381 0DE gearbox clone
Comes with the authorization, no need to purchase additional licenses

3. Yanhua ACDP module 21 (VW/Audi Gearbox Mileage Correction Module 21)

Feature: supports VW/Audi DQ200 (0AM/0CW), DQ250 (02E/0D9), DL382 (0CK), VL381 (0AW) gearbox mileage correction

Good to know:
The new Mini ACDP module 21 comes with the same hardware configuration as module 13. The difference is module 13 adds a DL501 (0B5) interface board, and they support different functions.

If you have a module 13 for the VW Audi gearbox clone, just pay for a software license to add the gearbox mileage correction function. Don't need to buy interface boards again.

If you do not purchase module 13, and only want to change the mileage of the VAG gearbox and do not want to clone the gearbox for VAG, just purchase Module 21.


So, how to use the module to work with Mini ACDP?
1. ACDP module 13 VW Audi Gearbox Clone
Connection diagram:

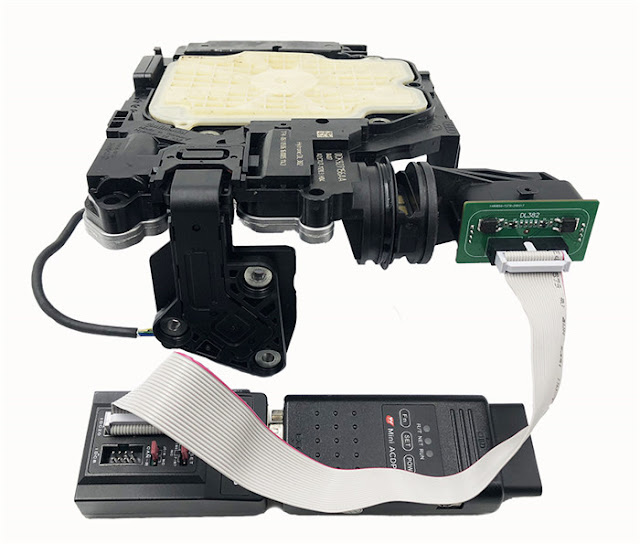

VW AUDI DL382 (0CK)


VW AUDI DQ200 (0AM/0CW)

VW AUDI DQ250 (02E/0D9)


VW AUDI VL381 (0AW)


VW AUDI DL501 (0B5)


Operation guide:
Select VW>> Gearbox Clone>> VW, Audi, Seat, Skoda>> the corresponding gearbox model>> Full Backup>> Full Write

2. ACDP module 21 VW Audi gearbox mileage correction
The connection diagram is the same as module 13.

Operation guide:

• Select VW>> Gearbox mileage correction>> VW, Audi, Seat, Skoda >> the corresponding gearbox module supported>> Identify>> Mileage correction (auto mode) or Mileage correction (single step mode)

Note: Mileage correction (auto mode) is recommended to use. It supports EEPROM reading, mileage adjustment and EEPROM writing by Mini ACDP.

Mileage correction (single step mode) is recommended only in the following situations.

• Read EEPROM by another device, and write EEPROM by ACDP
• Read EEPROM by ACDP, and don’t want to write EEPROM data

3. ACDP module 19 VW/Audi DQ380/DQ381 0DE gearbox clone

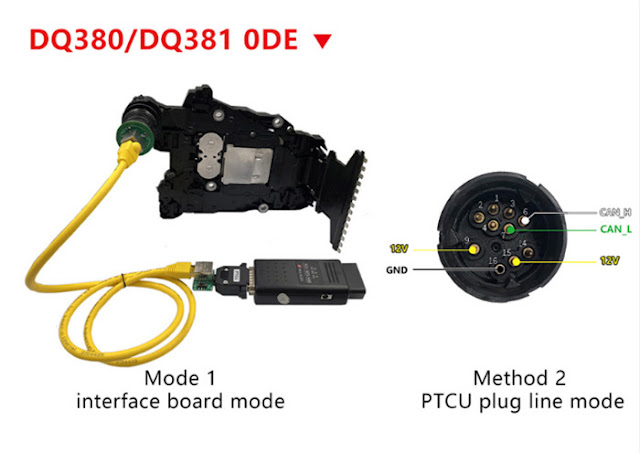

Connection diagram:


Operation guide:

• VW>> Gearbox Clone>> VW/Audi/Skoda>> DQ380 (0DE) or DQ381 (0DE)>> Identify>> Full Backup Data>> Full Write Data
• VW>> Gearbox Clone>> Seat>> DQ381 (0DE)>> Identify-> Full Backup Data-> Full Write Data

Src: Yanhua Mini ACDP with Module 19 Clone SH725XX Gearbox No Soldering
